Epos ES14N

Kategorija: Zvučnici
Brend: Epos

552.000 din

Količina kom

Dodaj u korpu

Restarting EPOS could only mean re-creating the most famous model, the ES-14. This was a 2-way speaker in a fairly big cabinet and classic looking cabinet, to be used on a dedicated stand. The design should be classic, not lifestyle, only doing things that help with the sound and as straight forward as possible. Analyzing the old construction was interesting. It used a 7“ woofer with Polypropylene cone and an underhang coil with a huge magnet, but multiple layers of VC winding to make the whole coil heavy in order to get a sort of roll-off in the response curve of the woofer. The size of the woofer was not following any standard – too big for a 6.5“, but too small for an 8“. But it was a clever choice, because you could get more drive at lower frequencies more like an 8“ and a midband character closer to the 6.5“.

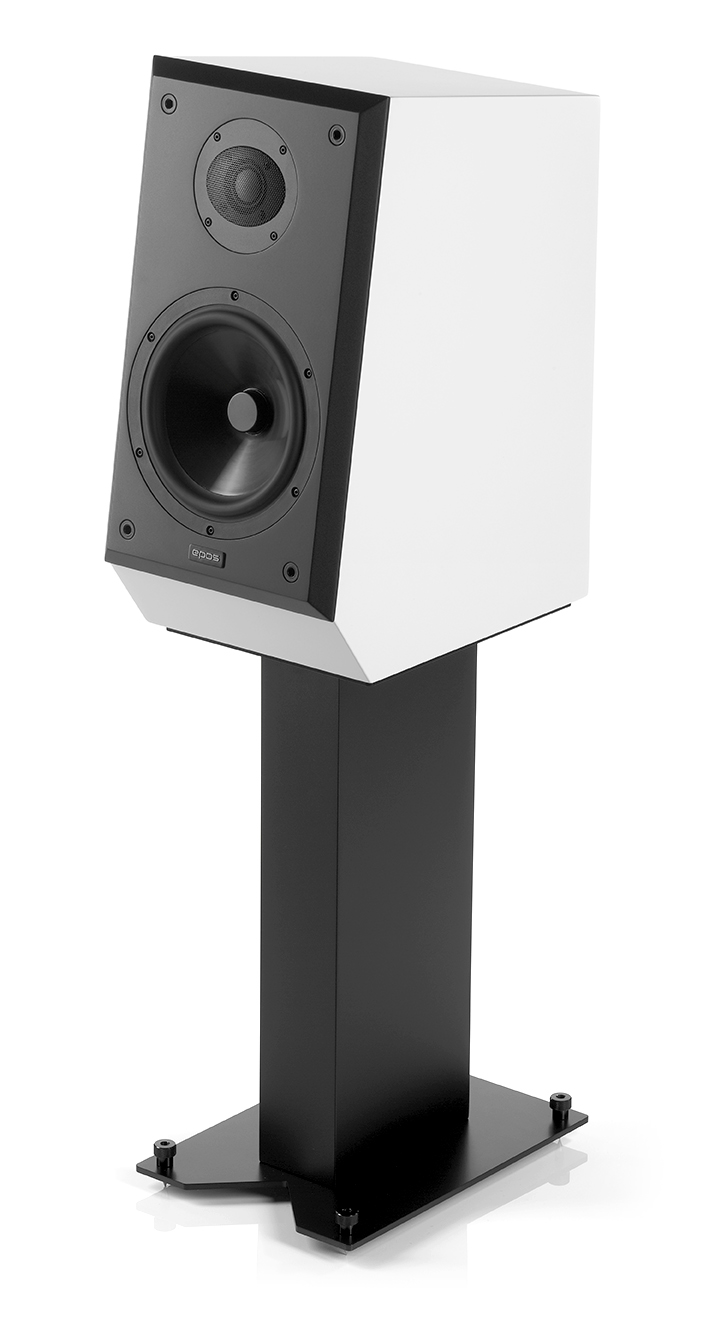

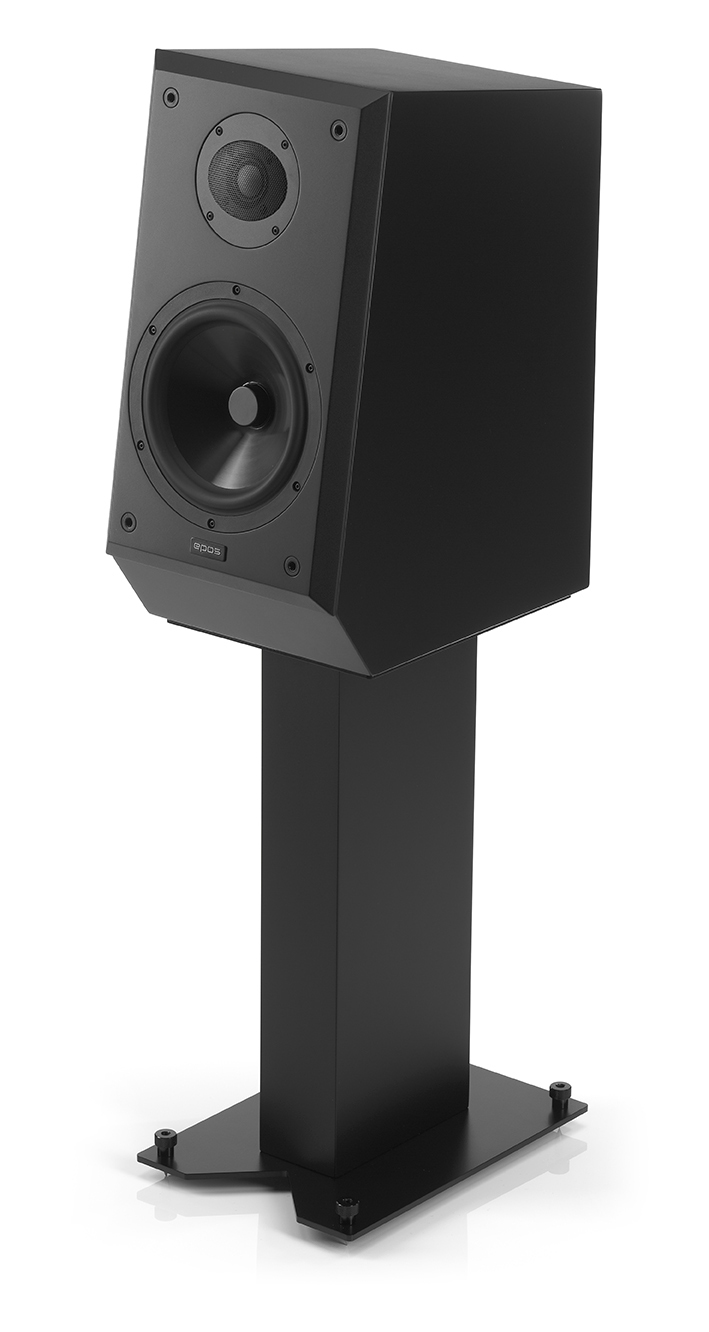

To give the speaker a home to sit on, a dedicated stand is available. The middle part is made as a massive wooden bar, combining 4 layers of wood, glued together with same damping glue used internally in the ES14N. The top plate is a double layer steel plate with a Bitumen layer in between and the bottom plate is a thick steel plate to hold adjustable spikes. The Speaker can be shipped without a stand, so other 55cm high stands can be used as well.

Iskazana cena je za par u bilo kojem finišu, sa stalcima.
