CD 200 Signature

CD 200 Signature

Kategorija: CD Plejeri
Brend: Atoll Electronique

  • Pure audio mechanism from TEAC designed with specific anti-vibration material
  • 8 regulated supplies with one specific for the converter
    – BURR-BROWN PCM1792 converter – 24bits/192 kHz, 8x oversampling
    – 129 dB dynamic, 129 dB signal/noise
  • Differential current outputs
  • Current/voltage converters with bipolar transistors.
  • Output differential stages with discrete components polarized on A class.
  • CD text
  • Linear supplies with a low noise toroïdal transformer dedicated to audio stages
  • Linear supplies with a specific high quality 30VA transformer dedicated to digital stages
  • Low consumption OLED display

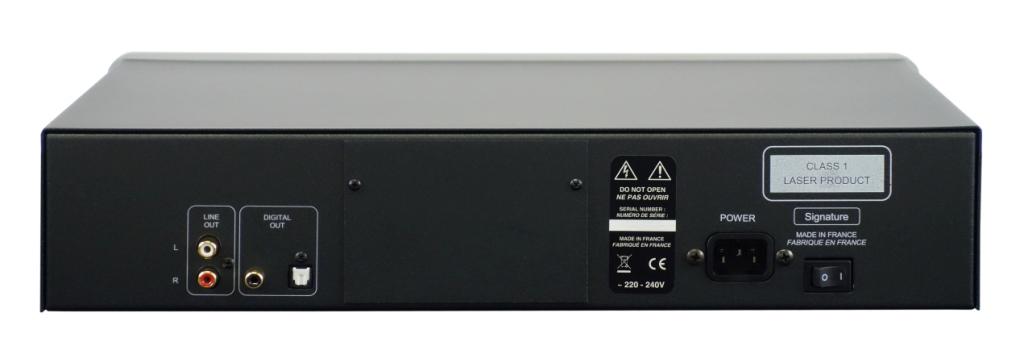

  • 1 Coaxial and 1 Optical output

TECHNICAL FACTS


CD200 Signature
Supply30+30VA
Total of capacitors17 000 µF
Output StageSymetrical / discrete
Output Level2,5 Vrms
Output Impedance75Ώ
Converter (D/A)24 Bit / 192kHz
Digital OutputCoaxial & Optical
Signal/Noise Ratio129 dB
Distortion at 1kHz< 0,002 %
Bandwidth5–20 kHz
Rising Time2 µs
Dimensions (mm)440x280x90
Weight8 kg
